MT Displays | WindPro
Sign of Innovation and Quality

Color Options

Black

Silver

Wood Effect

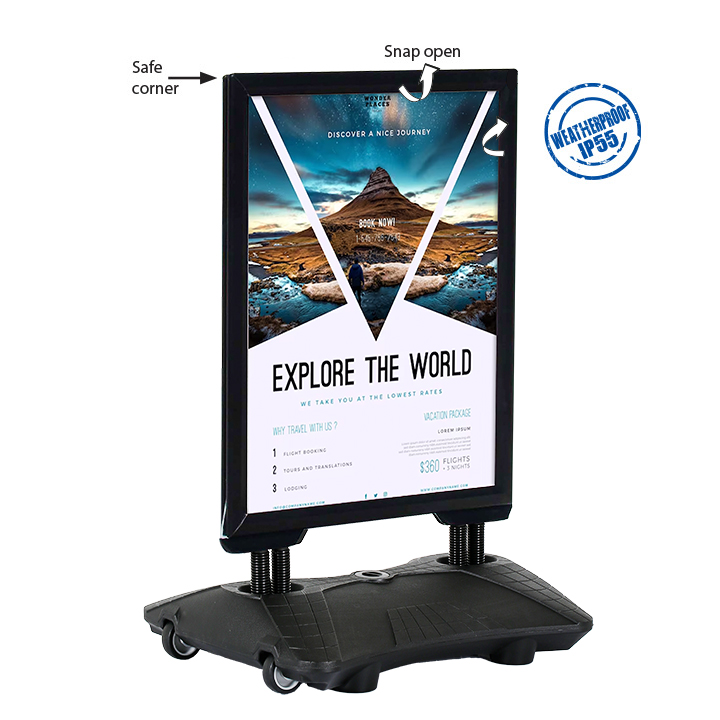

• Waterproof IP55
• Suitable for outdoor conditions from -15ºC/5ºF to +50ºC/122ºF.
• Double-sided stopper as paving slab.

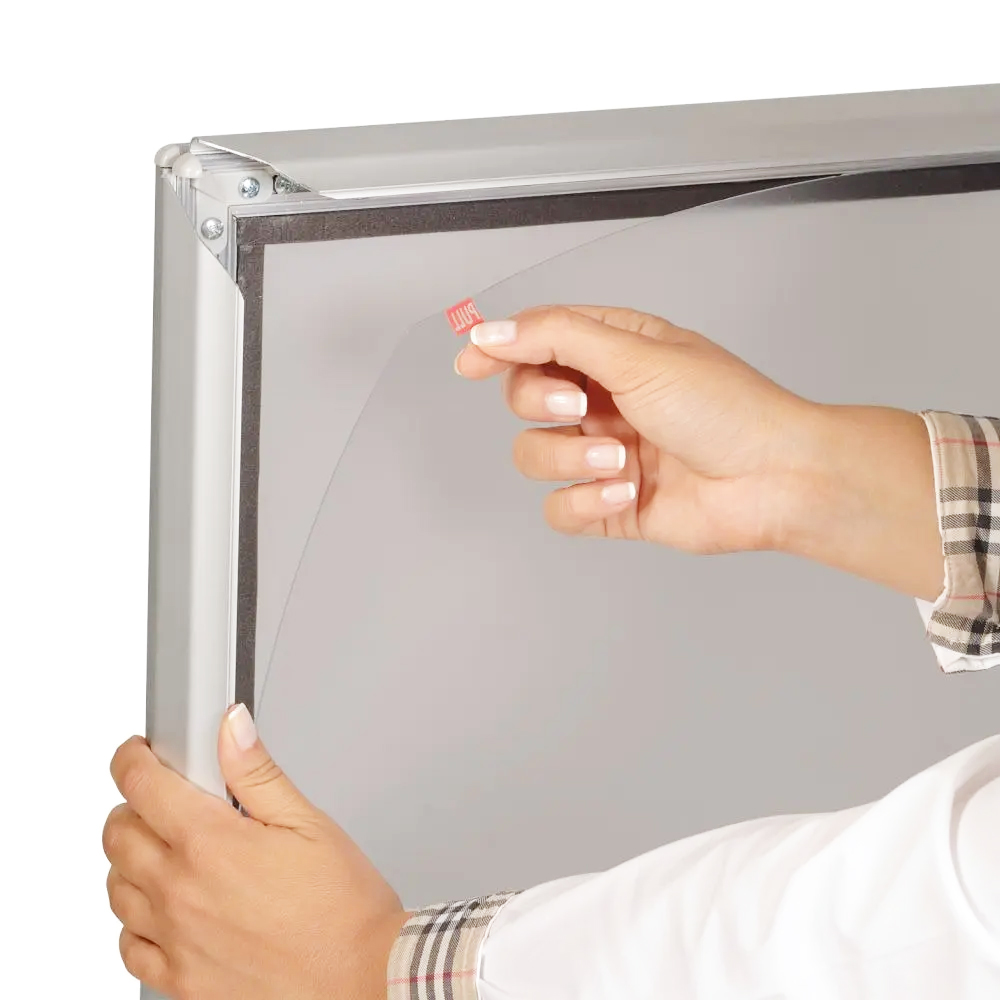

• Click clack snap opening system provides easy operation.
• Patented product.
• Suitable for use in outdoor conditions.

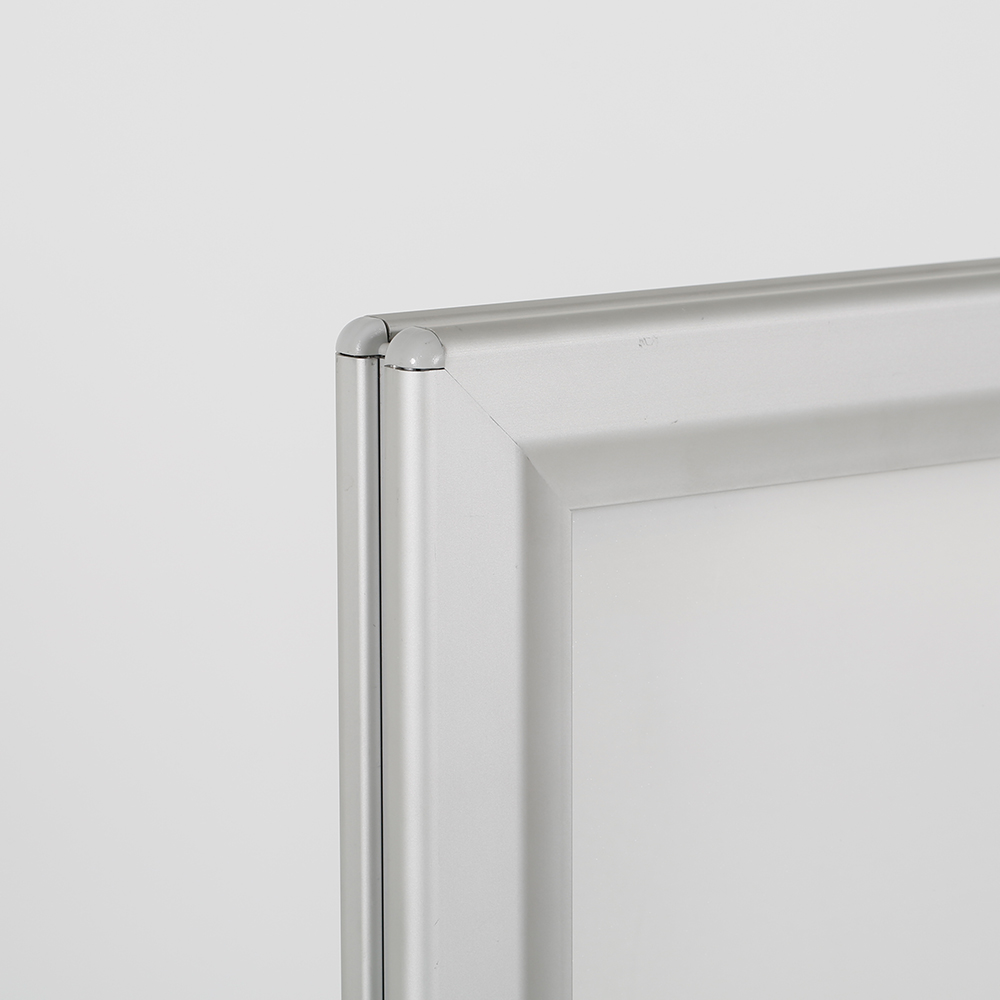

• Frame – Natural silver-anodized, black or wood effect in standard.

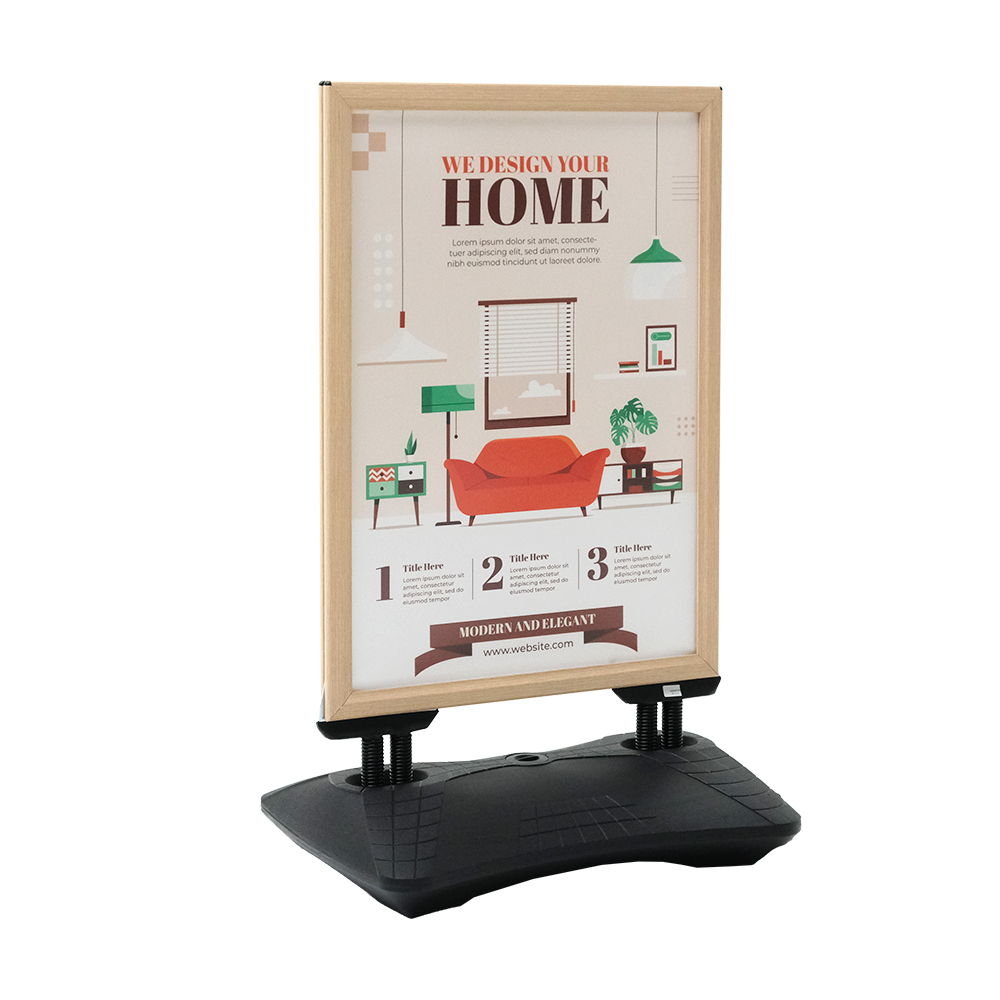

• Wood effect product has with channel (W CH) and without channel (W/O CH) versions.

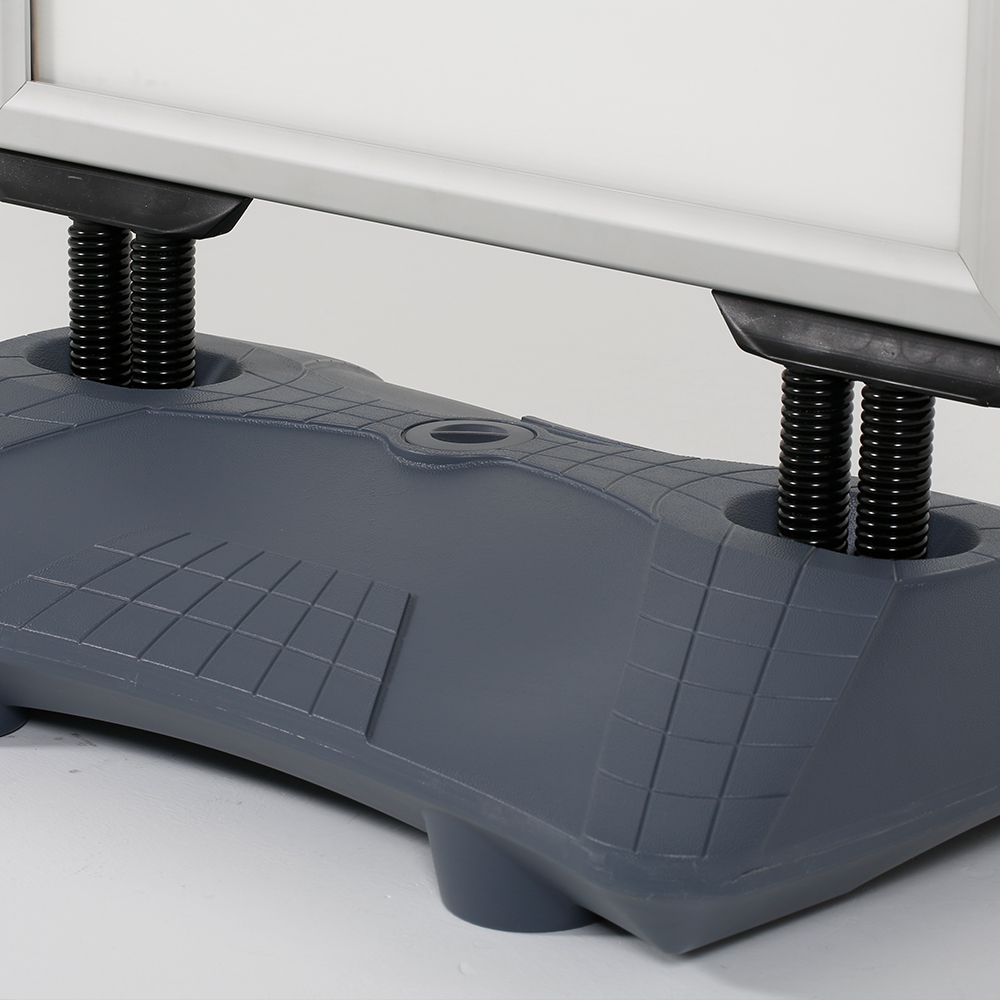

• Base – standard in dark grey color or black.
• Snap frame can be used with two different bases.

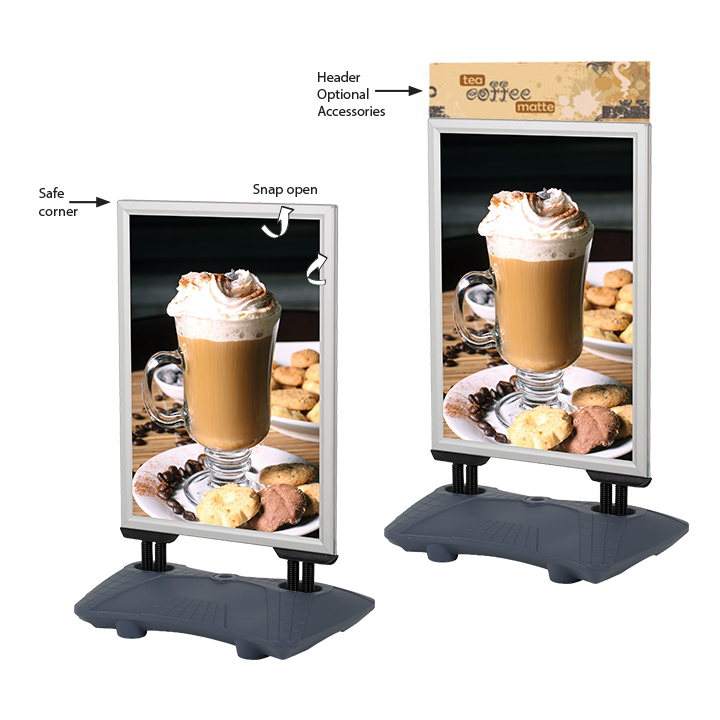

• For optional header use, hood-enabled frames must be ordered.



DIMENSION

20 “X30″, 22″X28″, 24″X36″, 30″X40”

PATENT

OHIM DM/084 128 PCT/EP2018/060515

Product Description

In the event that SwingPro and WindPro are required with the “HEADER” option, standard frames cannot be used. Please contact our sales department for frames suitable for use with Header.

Product Specifications

MATERIAL : Silver anodised aluminium WEIGHT PACKING SIZE
SILVER BLACK EXTERNAL (x-y) POSTER COPY WITH PACKING *W X H X D
USWP010NA1 USWP010BA1 26.02″ x 35.75″ 23.39″ x 33.11″ 22.91″ x 32.64″ 15.65 lbs 28.15″ x 46.85″ x 1.85″
USWP010NA0 USWP010BA0 35.75″ x 49.45″ 33.11″ x 46.81″ 32.64″ x 46.34″ 25.57 lbs 38.19″ x 61.42″ x 1.85″
USWP010NB2 USWP010BB2 22.32″ x 30.20″ 19.69″ x 27.56″ 19.21″ x 27.09″ 14.11 lbs 24.21″ x 40.55″ x 1.85″
USWP010NB1 USWP010BB1 30.20″ x 42.01″ 27.56″ x 39.37″ 27.09″ x 38.90″ 20.94 lbs 32.48″ x 52.36″ x 1.85″
USWP010N22 USWP010B22 24.65″ x 30.67″ 22″ x 28″ 21.54″ x 27.56″ 14.99 lbs 26.57″ x 40.94″ x 1.85″
USWP010N23 USWP010B23 22.64″ x 32.64″ 20″ x 30″ 19.53″ x 29.53″ 14.77 lbs 24.61″ x 43.70″ x 1.85″
USWP010N24 USWP010B24 26.65″ x 38.66″ 24″ x 36″ 23.54″ x 35.55″ 17.42 lbs 29.13″ x 49.61″ x 1.85″
USWP010N34 USWP010B34 32.64″ x 42.64″ 30″ x 40″ 29.53″ x 39.53″ 22.49 lbs 34.84″ x 53.54″ x 1.85″



MATERIAL : Silver anodised aluminium WEIGHT PACKING SIZE
WOODL W/O CH WOODL W CH EXTERNAL (x-y) POSTER COPY WITH PACKING *W X H X D
USWP010WA1 USWP011WA1 26.02″ x 35.75″ 23.39″ x 33.11″ 22.91″ x 32.64″ 15.65 lbs 28,15″ x 46,85″ x 1.85″
USWP010WA0 USWP011WA0 35.75″ x 49.45″ 33.11″ x 46.81″ 32.64″ x 46.34″ 25.57 lbs 38.19″ x 61.42″ x 1.85″
USWP010WB2 USWP011WB2 22.32″ x 30.20″ 19,69″ x 27,56″ 19.21″ x 27.09″ 14.11 lbs 24.21″ x 40.55″ x 1.85″
USWP010WB1 USWP011WB1 30.20″ x 42.20″ 27.56″ x 39.37″ 27.09″ x 38.90″ 20.94 lbs 32.48″ x 52.36″ x 1.85″
USWP010W22 USWP011W22 24.65″ x 30.67″ 22″ x 28″ 21.54″ x 27.56″ 14.99 lbs 26.57″ x 40.94″ x 1.85″
USWP010W23 USWP011W23 22.64″ x 32.64″ 20″ x 30″ 19.53″ x 29.53″ 14.77 lbs 24.61″ x 43.70″ x 1.85″
USWP010W24 USWP011W24 26.65″ x 38.66″ 24″ x 36″ 23.54″ x 35.55″ 17.42 lbs 29.13″ x 49.61″ x 1.85″
USWP010W34 USWP011W34 32.64″ x 42.64″ 30″ x 40″ 29.53″ x 39.53″ 22.49 lbs 34.84″ x 53.54″ x 1.85″



NEWTECH WATER BASE: HLDPE WEIGHT PACKING SIZE
SILVER BLACK DIMENSION FOR H In D WITH PACKAGING *W X H X D
UTWM003000 UTWM003010 28.35″ X 20.87″ 22″ x 28″ 39.33” 28.35” 20.87” 9,876 lbs 21.85″ x 29.53″ x 7.01″
24″ x 36″ 47.36” 28.35” 20.87” 9,876 lbs 21.85″ x 29.53″ x 7.01″
UTWM004000 UTWM04010 35.43″ X 24.80″ 28″ x 44″ 55.31” 35.43” 24.80” 15.101 lbs 23.82″ x 36.61″ x 7.01″
30″ x 40″ 51.34” 35.43” 24.80” 15.101 lbs 23.82″ x 36.61″ x 7.01″

* W: Width H: Height D: Depth





Poster Thicknesses

Articles Poster Size Standard Poster Thickness Maximum Poster Thickness (low density rigid posters such as PVC Foam, PP, etc.) Notes
USWP000NA1 23.38″ x 33.11″ 0.004″- 0.008″ 0.07 with gasket / with water wick
USWP000NA0 23.38″ x 46.81″ 0.004″- 0.008″ 0.07 with gasket / with water wick
USWP000NB2 19.68″ x 27.83″  0.004″- 0.008″ 0.07″ with gasket / with water wick
USWP000NB1 27.83″ x 39.37″  0.004″- 0.008″ 0.07″ with gasket / with water wick
USWP000N22 22″ x 28″ 0.004″- 0.008″ 0.07″ with gasket / with water wick
USWP000N23 20″ x 30″  0.004″- 0.008″ 0.07″ with gasket / with water wick
USWP000N24 24″ x 36″ 0.004″- 0.008″ 0.07″ with gasket / with water wick
USWP000N34 30″ x 40″  0.004″- 0.008″ 0.07″ with gasket / with water wick
