Name: SwingPro Lite - MT Displays
SKU: 383

Products

Sidewalk Signs

Color Options

OUTDOOR Friendly
WindPro Lite is heavy and robust waterbase pavement sign for outdoor. It consists of 0.08″ main articles: frame and the base. No sharp edges and has steel springs for flexibility. Poster use is double sided.

SIZES

22″ X 28″ , 24″ X 36″ , 28″ X 44″ , 30″ X 40″

PATENT

PCT/EP2018/060515

Product Description

In case SwingPro and WindPro is required with a “HEADER” option, then the standard frames cannot be used. Please contact our sales department for the frames suitable for use with header.

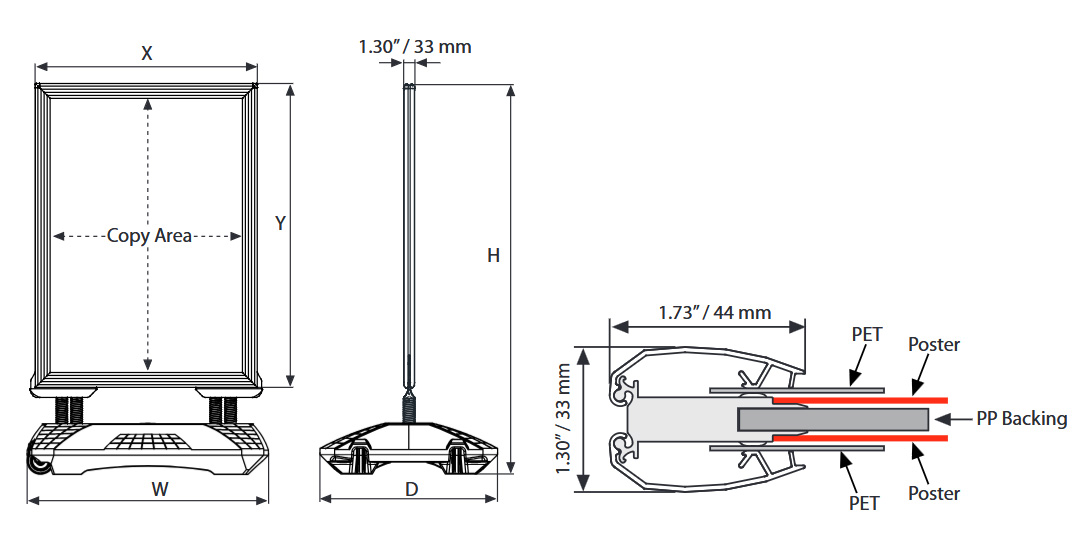

Product Specifications

STEEL BASE : Silver anodised aluminium							WEIGHT	PACKING SIZE
SILVER	BLACK	SIZE	FOR	H	W	D	WITH PACKING	*W X H X D
UTSM001000	UTSM001010	36.22”	22”X 28”	41.30”	27.17”	36.22”	7.716 lbs	8.66” X 38.19” X 1.85”
UTSM002000	UTSM002010	42.13”	24”X 36”	49.33”	27.17”	42.13”	8.818 lbs	8.66” X 46.46” X 1.85”
UTSM003000	UTSM003010	49.61”	28” X 44”	57.28”	35.04”	49.61”	10.141 lbs	8.66” X 51.57” X 1.85”
UTSM003000	UTSM003010	49.61”	30” X 40”	53.31”	35.04”	49.61”	10.141 lbs	8.66” X 51.57” X 1.85”

FRAME : Silver anodised aluminium					WEIGHT	PACKING SIZE
SILVER	BLACK	EXTERNAL (x-y)	POSTER	COPY	WITH PACKING	*W X H X D
USWPL00N22	USWPL00B22	23.50” X 29.49”	22” X 28”	20.98” X 26.98”	12.015 lbs	25.39” X 39.76” X 1.38”
USWPL00N24	USWPL00B24	25.51” X 37.52”	24” X 36”	22.98” X 34.98”	14.418 lbs	27.17” X 47.83” X 1.38”
USWPL00N34	USWPL00B34	31.50” X 41.50”	30” X 40”	28.98” X 38.98”	18.739 lbs	33.27” X 51.77” X 1.38”
USWPL00N84	USWPL00B84	29.50” X 45.50”	28” X 44”	26.98” X 42.98”	19.841 lbs	31.30” X 55.71” X 1.38”

* W:Width H: Height D: Depth

Poster Thicknesses

Articles	Poster Size	Standard Poster Thickness	Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc)
USWPL00N22	22” X 28”	0.004″-0.008″	0.08″
USWPL00N24	24” X 36”	0.004″-0.008″	0.08″
USWPL00N34	30” X 40”	0.004″-0.008″	0.08″
USWPL00N84	28” X 44”	0.004″-0.008″	0.08″
