Name: A Board - MT Displays
SKU: 116

Products

Sidewalk Signs

Color Options

• OUTDOOR Friendly
• Double sided stopper as pavement sign

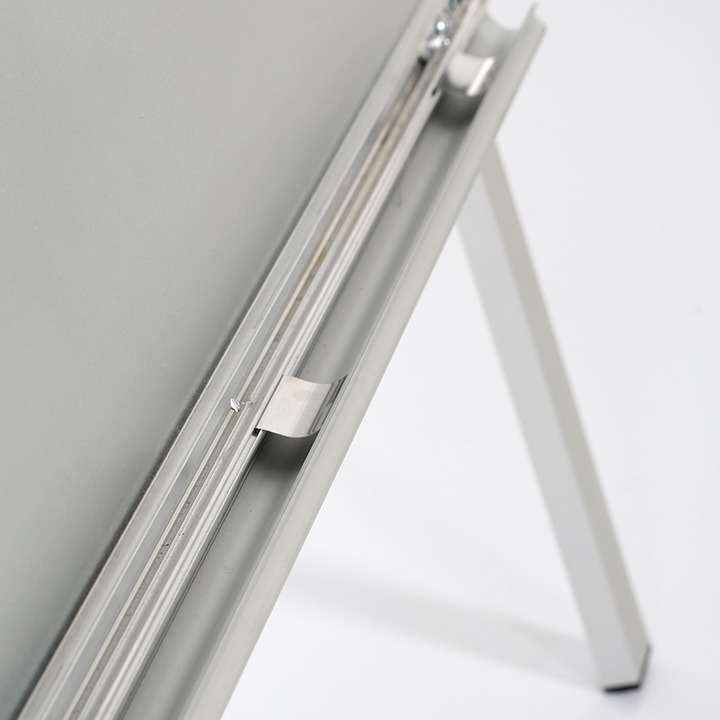

• ‘’Click clack’’ snap open principle for the frame
• Header board and brochure baskets are optional
• Metal back panel provides stability

Product Specifications

MATERIAL : Silver anodised aluminium									WEIGHT	PACKING SIZE
MITRED SILVER	MITRED BLACK	ROUND SILVER	ROUND BLACK	SAFE CORNER	POSTER	X	X1	H	WITH PACKING	*W X H X D
UAB3250N23	UAB3250B23	UAB3200N23	UAB3200B23	UAB3210N23	20” X 30”	21.69”	27.56”	37.40”	TBA	25.59” X 44.09” X 4.41”
UAB3250N22	UAB3250B22	UAB3200N22	UAB3200B22	UAB3210N22	22” X 28”	19.69”	27.56”	37.40”	TBA	27.56” X 42.13” X 4.41”
UAB3250N34	UAB3250B34	UAB3200N34	UAB3200B34	UAB3210N34	30” X 40”	31.69”	33.46”	49.21”	TBA	31.89” X 50.39” X 4.41”

BASKET		WEIGHT	PACKING SIZE
ARTICLE	CAPACITY	WITH PACKING	*W X H X D
UYTS3000A4	8.27” X 11.69” X 2.57”	1.146 lbs	9.84” X 11.22” X 3.15”

* W:Width H: Height D: Depth

Poster Thicknesses

Articles	Poster Size	Standard Poster Thickness	Max Poster Thickness (Low density rigid posters such as PVC Foam,PP, etc)	Max Poster Thickness when rear profile without channel/groove (Low density rigid posters such as PVC Foam,PP, etc)	Notes
UAB3250N23	20” X 30”	0.004″-0.008″	0.12″	0,20″	Non-standard poster thickness to be informed with orders for production
UAB3250N22	22” X 28”	0.004″-0.008″	0.12″	0,20″	Non-standard poster thickness to be informed with orders for production
UAB3250N34	30” X 40”	0.004″-0.008″	0.12″	0,20″	Non-standard poster thickness to be informed with orders for production
